High Water Table, High Risk: Structural Foundation Design in South Florida
High Water Table, High Risk: Structural Foundation Design in South Florida isn’t just a design concern—it’s a survival strategy. In this low-lying region, saturated soils and rising seas threaten even the best buildings.
From Miami to Fort Lauderdale, structural engineers must rethink foundations. Shallow footings won’t work. Drainage is critical. And even small missteps lead to major damage.
This blog breaks down the unique challenges and how structural engineering companies protect buildings from below the surface.
The Reality of Building in South Florida
South Florida is geologically different from most U.S. regions:
- High groundwater levels year-round
- Poor soil conditions (sand, muck, limestone)
- Coastal flood zones and saltwater intrusion
- Hurricanes and surge events
- Sinkhole and settlement risk in inland areas
These conditions force engineers to design differently. Traditional slab-on-grade systems often fail in such environments.
What Is a High Water Table?
The water table is the level below which the ground is fully saturated with water. In South Florida, it can be:
- As shallow as 1–3 feet below grade
- Even higher after rain or during king tides
- A permanent risk due to sea level rise
This makes excavation, waterproofing, and structural stability much more complex.
Risks to Structural Foundations from High Water Tables
1. Foundation Heave and Instability
Waterlogged soil can shift, swell, or become soft. Poor load-bearing leads to settlement and cracks.
2. Hydrostatic Pressure
Water under and around the structure pushes upward and laterally. It stresses foundations and basements.
3. Soil Erosion and Washout
Rainfall and poor drainage can wash away supporting soil, especially in sandy or coastal conditions.
4. Corrosion of Steel Reinforcement
Saltwater and moisture accelerate rebar corrosion, which weakens structural members over time.
Solutions for Structural Foundation Design in South Florida
High Water Table, High Risk: Structural Foundation Design in South Florida demands tailored engineering—not templates.

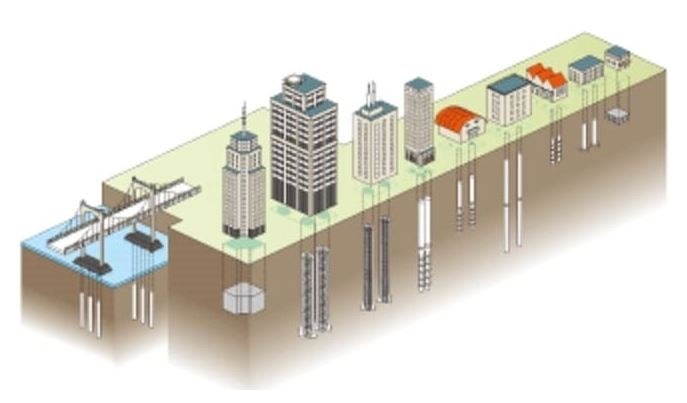

1. Pile Foundations
Driven piles bypass soft, saturated soil and reach stable strata below.
Types Used:
- Precast concrete piles
- Steel H-piles
- Auger-cast piles
These systems are ideal for large buildings and coastal sites.
2. Matt Foundations (Raft Slabs)
When deep piles aren’t feasible, a heavily reinforced concrete slab distributes loads over a larger area.
Use Cases:
- Mid-rise buildings
- Underground parking decks
- Sites with limited clearance
Proper sub-base prep and water control are key to success.
3. Caisson Foundations
Bored or drilled caissons work well in areas with underlying limestone or for heavy structures.
Benefits:
- Precise placement
- Deep anchorage into strong rock
Water must be managed during drilling to prevent collapse.
4. Slab-on-Grade with Compaction and Waterproofing
For lighter structures (e.g., small homes), slab-on-grade can work with:
- Well-compacted fill
- Capillary break layers (gravel, vapor barriers)
- Chemical soil stabilization
- Moisture-resistant insulation
Still, this option carries the highest long-term risk in high water zones.
Waterproofing and Drainage Strategies
Structural design is only half the battle. Water control is the other.
Best Practices:
- Perimeter drainage systems with sump pumps
- Waterproof membranes under slabs and walls
- Graded site contours that shed water away from the foundation
- Elevated finished floors above Base Flood Elevation (BFE)
All water management must align with local floodplain regulations.
Code Compliance in South Florida
Structural designs must meet:
- Florida Building Code (FBC)
- ASCE 7 for loadings (wind, flood, seismic)
- FEMA flood zone requirements
- Local geotechnical and civil standards
A licensed structural engineering firm ensures all systems meet or exceed required standards.
Soil Testing: The First Step
Before any design begins, soil investigation is essential.
Geotechnical Reports Provide:
- Groundwater depth
- Soil type and bearing capacity
- Potential for subsidence
- Seasonal variation data
A structural engineering company uses this data to determine the best foundation type for your project.
Foundation Design Considerations: Coastal vs. Inland South Florida
Not all high water table sites are the same. Let’s compare.
Coastal Sites:
- Saline water exposure
- Surge and tidal impact
- Erosion-prone soils
- High corrosion risk
Solutions: Piles, sealed foundations, elevated structures
Inland Sites:
- Variable water table
- Sinkhole or karst activity
- Clay or sand variability
Solutions: Soil improvement, mat foundations, caissons
Understanding your location’s risks is key to designing a lasting structure.
Resilient Materials and Detailing
In wet environments, not all materials perform the same.
Use:
- Epoxy-coated rebar or stainless steel
- Waterproof concrete admixtures
- Bentonite-based seals at joints
- Closed-cell foam insulation
These materials add cost—but drastically improve long-term performance.
Long-Term Maintenance and Monitoring
Even the best designs need upkeep.
Plan For:
- Annual sump pump testing
- Waterproofing membrane inspections
- Monitoring settlement and structural movement
- Drain cleaning and elevation checks
Smart structural design also includes a smart maintenance plan.
Final Thoughts
High Water Table, High Risk: Structural Foundation Design in South Florida is a challenge best met with data, expertise, and experience.
You need a structural engineering company that understands saturated soils, floodplain risk, and local codes. Don’t guess. Get the right tests, the right system, and the right design.
Whether you’re building a custom home, condo, or commercial site—start strong from below.
Because in South Florida, your foundation is everything.
